0.25m Right Angled Cable Connectors For RT Latitude MDR Receiver

Ask Lasest Price
Brand Name :	RAYMO
Model Number :	FHG.00.302.JS32Z
Certification :	SGS, REACH, RoHS2.0, ISO:9001-2015, CE
Price :	12USD~20USD/PCS
Payment Terms :	Western Union, L/C, D/A, D/P, T/T
Supply Ability :	5000Pieces/ Week
Delivery Time :	5-7wds

Add to Cart

Product Details
Company Profile

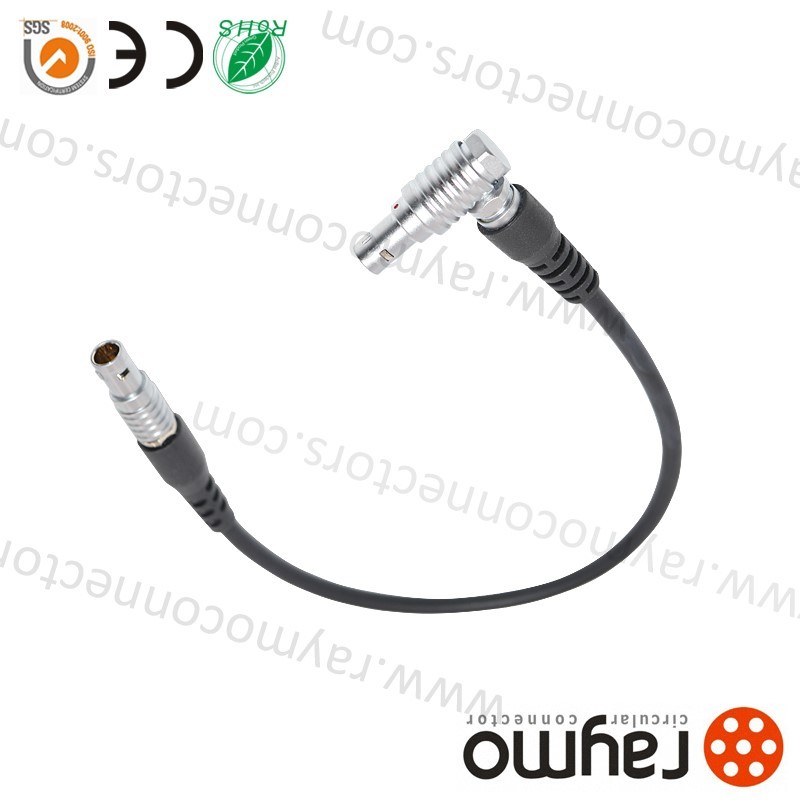

0.25m Right Angled Cable Connectors For RT Latitude MDR Receiver

Teradek 2-Right Angled Motor Cable Circular Push Pull Connectors For RT

Latitude Mdr/Mk Receiver To Mdr Lens Motor

Parts Description

FHG.302 right angle cable connectors with 2pcs, cable length can be prced

according customer real needs. Except right angle cable connectors, we can do it

with straight circular push pull connectors too.

Main Features of FHG cable circular connector

1. Push pull locking metal connector, cable to cable connector, free socket, inline connector

2. can be 100% compatible with original connector

3. can plated with white or black chrome

4. 360 angle screening for full EMC shielding

5. ISO:9001-2015 CE RoHS2.0 SGS REACH

6. All diferent shell size from 00 to 4B are available

7. 2 pins to 64 pins are available

Push-pull Self-locking Metal Connector

Mechanical Shock	100g-6ms
Connector Type	Cable connector, male contacts
Number of Positions	2 pins
Termination	Solder
Fastening type	Push Pull
Key code	G(A…M&R)
Shell Color	Natural
Contact Material	Brass
Contact Finish-mating	Gold
Contact Color	Gold
Insert material/insulator	PPS/PEEK

Technical Characteristics of Metal Circuar push pull connector

Temperature Range	- 40° C, +125° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>96hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP50	Endurance(shell)	5000 mating cycles

RAYMO Circular Connector :

Raymo is a manufacturer located in Shenzhen, focusing on manufacturing mental and plastic circulor

push-pull connectors and cable assemblies to serve over 75 countries and regions since 2010.Prcts

can be 100% compatible with original ones(LEMOS,FISCHERS,HIROSE,BINDERS SRIES)

RFQ:

Q1. Can I have a sample ?

Yes, we welcome sample order to test and check quality. Some samples are free, and some samples should be

paid in advance and the cost will be refund after further order.

Q2. What about the prction lead time?

We have stock, fast delivery below 5,000 pieces.

Q3. How do you ship the goods and how long does it take to arrive?

We often ship by DHL, UPS, FedEx,TNT,SF or EMS. It usually takes 3-5 days to arrive.

Q4. Is it OEM available?

Yes. We have rich experience and good ability to put your design and idea into real prct, normally it take

about 20 to 30 days for new prct from mold design to final prction.
