Lemos Alternative FGG FHG 1B BNC Circular Push Pull Connector

Ask Lasest Price
Brand Name :	RAYMO
Model Number :	FHG.1B.305.CLAD52Z
Certification :	CE/ ISO9000:2015/ ROHS/ SGS/ REACH
Price :	Negotiable
Payment Terms :	Western Union, L/C, D/A, D/P, T/T
Supply Ability :	5000Pieces/ Week
Delivery Time :	5-7wds
MOQ :	1PCS

Add to Cart

Product Details
Company Profile

Lemos Alternative FGG FHG 1B BNC Circular Push Pull Connector

Lemos alternative FGG FHG 0B 1B 2B 3B to BNC circular push pull connector

Raymo FHG 1B can alternative with FGG.1B Lemo connector but cheaper and short lead time. Raymo electronics technology limited is a professional circular push pull connector and cable assemble manufacturer.company have advanced prction equipment, testing equipment, high-end CNC lathe and a professional team, dedicated to provideinnovative solutions & high quality prcts for industrial, telecommunication, military, medical and automotivemarkets.By the end of 2019, the company has successfully passed the ISO9001 (2015) quality system certification,ROHS certification, CE certification, Reach certification and other authoritative certification.

We can make all types of cables and connectors as per customers' request. Use any kind of connectors, like Hirose, Cannon, BNC, TNC, D-dtap, D-Sub, USB-A, USB-B, RJ45, JST, Molex, and so on. Just tell us your need, leave the rest to RAYMO.

1.Description

100% substitute with original LEMO
Brass with natural chrome plated shell, contact with gold plated
different shell size is available from 00B,0B,1B,2B,3B,4B,5B
can solder with wire to save your time
360° EMC shield
Available Solder,PCB or right angle PCB contacts
Robust and shock resistant designs

2.Technical Characteristics

Temperature Range	- 65° C, +200° C
Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shock Resistance	100 g [ 6 ms]
Salt spray corrosion test	>96hr
IP Rating	IP 50
Life Cycles	5000 times
Certifications	ISO9001 CE ROHS2.0 SGS

3.Construction and Size

FHG cable connectors with differnt shell size and contacts

4. Application

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application

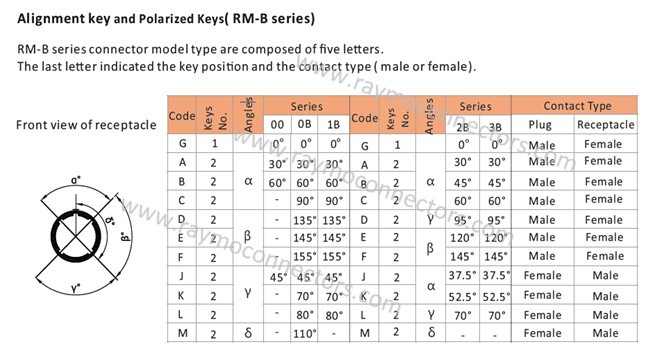

5.Alignment Keys

Lemos Alternative FGG FHG 1B BNC Circular Push Pull Connector

6.Why choose us

Free cable solutions
100% compatible lemo connector
OEM or ODM accepted
Help you save at least 50% cost, Bend relief of plug are free
Cable assembly offer
Free sample for confirmation
Fast delivery time to help you save prction time

6.DIY cable assembly process:
Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
Screw the collet nut tightly Hitch the sleeve to the corresponding step of collet nut.

Price, lead time, drawing, datasheet get now!
