1. Brief intrction
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED has been specializing in prcing Waterproof Connector Metal Fast
Lock for many years, we providing high quality waterproof metal
connector Prcts. Quality is our priority. Raymo always attach great
importance to quality controlling from the very beginning to the
very end. Our factory has gained ISO9001, If you are searching for
waterproof connector metal fast lock, please feel free to contact
us.
Connectors can corss with LEMO, Fischer, , BINDER, HIROSE and
38999.
circular waterproof connector B series, Raymo RM-L IP68 connector
for automative, 9pins power connector
Substitute with S1/ S2 cable plug connector, more cheaper and short delivery time
RM-FS2.0L1C.P09JS50Z=straight plug, 0L series, key 1, 0
degree,,ultopole contacts 9pins, outshell in natural chrome -plated
brass, PPS insulator, male solder contacts,collet for 4.2-5.2mm
diameter cable,IP68
2. Features and Benifits
Push-pull Self-locking Metal Connector
Compact and lightweight construction
The unique design of the contact core makes it safe and reliable in
all environments
Available solder , PCB and right angle PCB contact
360° EMC shielding
Alignment Key and Polarized Keying System to avoid cross-interface
3. Application
Military
Automotive
Aviation
Industrial Control
Information Systems
Industrial electronics
Test and measurement
Data Transfer Equipment
Sensor & Sensor Systems Instrumentation

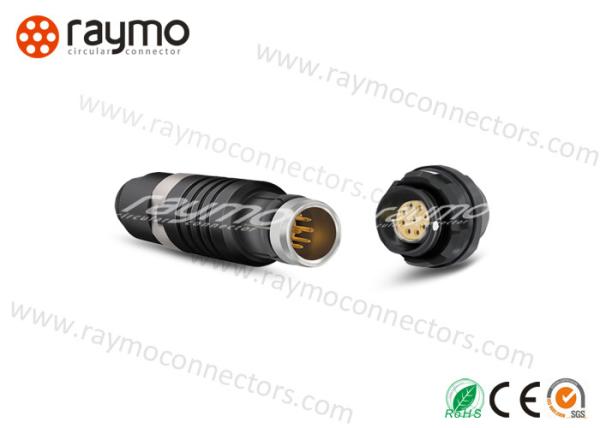

4. RM-L series FS2, Prcts Photo, Shell size and Dimension
Alignment key and Polarized Keys( RM-L series)
RM-L series connector model type are composed of five letters
The last letters indicate the key position and the contact
type(male or female)
5. Characteristics
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 55/175/21 | Shielding (min) | > 95dB [ at 10 MHz], > 80 dB [ at 1 GHz] |
| IP Rating | IP 68 | Endurance(shell) | ≥5000 mating cycles |
6. Why Choose US?
100% compatible with lemo, , fischer connector
Help you save at least 50% cost
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time
- We can provide OEM/ODM service and cable assembly solution
it has excellent compatibility with many leading supplierour company has over 9 years experience and strong professional
research and development capabilities.Advanced development and
management, comprehensice R&D TESTING and highly automatic
prction line make our prcts high reliablilyty and high performance.
Our comapny has passed ISO90001,and got CE, REACH, RoHS and SGS
certification
7. Choosing tip
If you have ordered this shell connector and know the original
model P/N,please tell us.We will directly offer you our
correspinding one.
If you don't know much about the connector,please make choose
according the following factors:
The use of enviroment,indoor or ourdoors,waterproof or not
The panel hole size, to seclect the approproate plug and socket of
right dimension
the current voltage and the realization of the function, to
determin the cores
seclect the appropriate clam diameter and sheath
according to the actual needs of different angles of the keys, to
determin the keying
Solve the original brand's high cost and long lead time!
