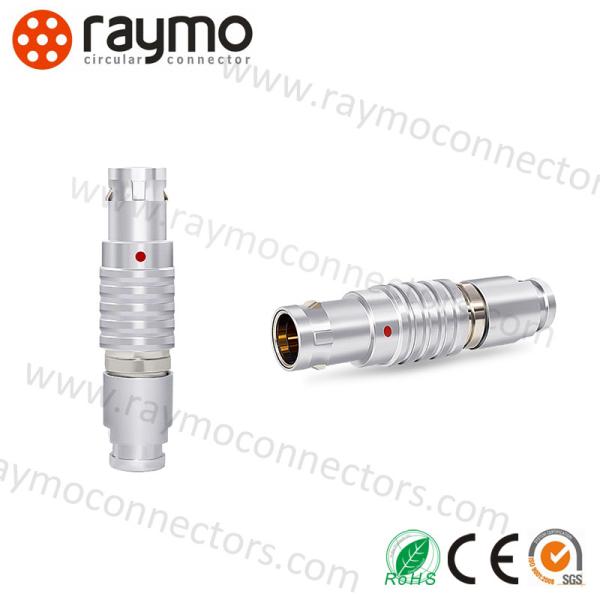

Alternative Cable Mount Connector 8 Contacts Lemo Push Pull Connector

The 2B series 8-contacts male circular connector has a plug in-line connection. This cable mount connector has a current rating of up to 10A. This connector features a highly precise push-pull self-latching system equipped with cable collet and nut for fitting bend relief for an easy and secure connection. It has a rugged and robust design for harsh outdoor applications. This connector is made from chrome-plated brass that includes a nickel-plated brass latch inner sleeve and collet nut. The free plugs are supplied with collets to take a maximum cable diameter of 9mm.
Cable plug

Self-Latching Connection System for Push Pull Connector

The self-latching system is simple and effective retention solution, providing complete protection against vibration, shock or any pull on the cable.

Engaging the system for Push Pull Connector

To initiate the self-latching system the plug is simply pushed axially into its mating half. Once firmly latched in place via the internal latches the connection is virtually impossible to break. No amount of pulling on the cable or any other part of the connector body will release the two parts.

Techinical characteristics for FGG.2B.308.CLAC**Z Push Pull Connector

Features and Benefits for FGG.2B.308.CLAC**Z Push Pull Connector

• Straight body orientation with cable clamping and positioning guide
• Solder termination
• EMC shielding of 360°
• Endurance is 5000 mating cycles
• Equipped with male contacts for soldering
• G keyed
• High vibrations and shock resistance
• Operating temperature ranges between -55°C and 250°C
• PPS insulating material

Applications for FGG.2B.308.CLAC**Z Push Pull Connector

Due to the 0B series compact size, the shielded connectors are ideal for applications in the industrial electronics sector. Some of the most common areas are:

• Test and measurement equipment
• Sensors and actuators
• Instrumentation
• Medical devices
• Audio / video

Part Section Showing Internal Components for Push Pull Connector
