K L Series Circular Push Pull Connectors Mini Snap

MINI-SNAP K series L series circular push pull connectors

Circular Push Pull Connectors have a very simple locking mechanism:

- As the plug is pushed into the receptacle, locking fingers on the plug snap into the receptacle creating a reliable connection between plug and receptacle.

-Pulling on the cable or the rear of plug causes the locking fingers to grab harder and a separation of plug and receptacle is almost impossible. Pulling on the outer plug housing causes the locking fingers to retract and the plug and receptacle separate easily.

Techinical characteristics for RM-FGG-1BC-307-JS62 Circular Push Pull Connector

Download our B series circular push pull connector here:

Raymo circular push pull B series connector.pdf

The Advantages of Circular Push-Pull-Connectors:
- Quick and easy mating and demating
- Quick and easy seperating
- With easy operating push-pull self-locking system
- High pin density contributing to equipment miniaturization
- Shell size from 00B to 3B
- Contacts from 2-30pins
- Alignment Key and Polarized Keying System to avoid cross-interface
- 360° EMC shielding

Important Applications for Circular Push-Pull Connectors:
It is widely used on all kinds of medical equipment's, specially for the signal transmission, Medical Equipment ,Audio / Video, Test and Measurement, Communications prct line. Some of the most common areas are:

-Medical Electronics
- Test and Laboratory
- Measurement Instrumentation
-Data and Telecom Systems
- Audio and Video Applications
- Military and Aerospace
- Industrial Controls
- Nuclear Technology

Our advantage:
- Original manufacturer
- Excellent R&D team
- 10+ years experience
- OEM & ODM acceptable
- 100% quality tested
- 100% fast delivery
- 100% after-sales service

FAQ:

-What is your terms of payment?
A: T/T 100% is acceptable.

-Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.

-How can we get a sample?

A: Contact Raymo at Sales02@raymoconnectors.com or by WhatsApp/Skype: +86 186 1712 6037

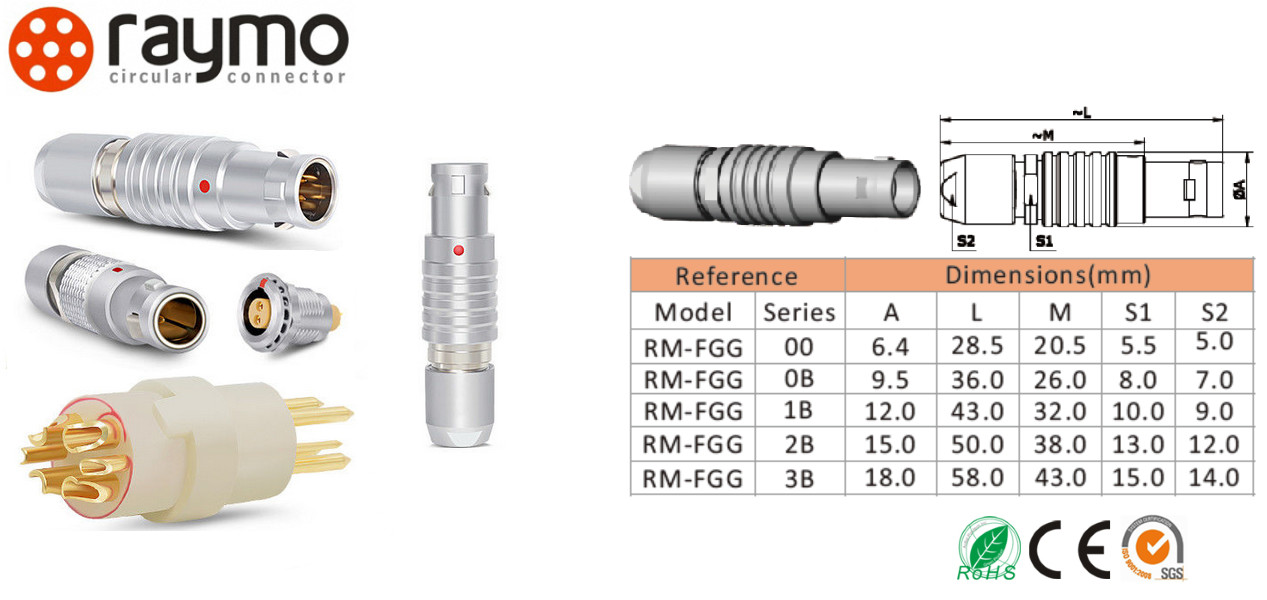

Drawing for series B FGG straight plug Circular Push Pull Connector

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED , here in after referred to as the “ RAYMO”,

As a manufacturer located in Shenzhen, focusing on manufacturing m Creative customer-oriented metal and plastic circular push pull connectors and cable assemblies to serve over 75 countries and regions since 2010.

With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.

RAYMO has already established an integrated quality control system from R&D, Supply Chain, Marketing, Sales, after-sales service to meet customer deeper demand, and expect to achieve Raymo’s globalization strategy.

Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer real needs

since the establishment.

RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipment, Aviation,

Audio-video, Petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement Instruments, etc.

Our Missions

Designing and developing more precision and suitable push pull connectors and cable assemblies for all humanity and the world

Providing better living conditions for employees

Certificates

CE, ROHS , ISO:9001-2015, SGS
